CDA353 (High Leaded Brass, 62%)

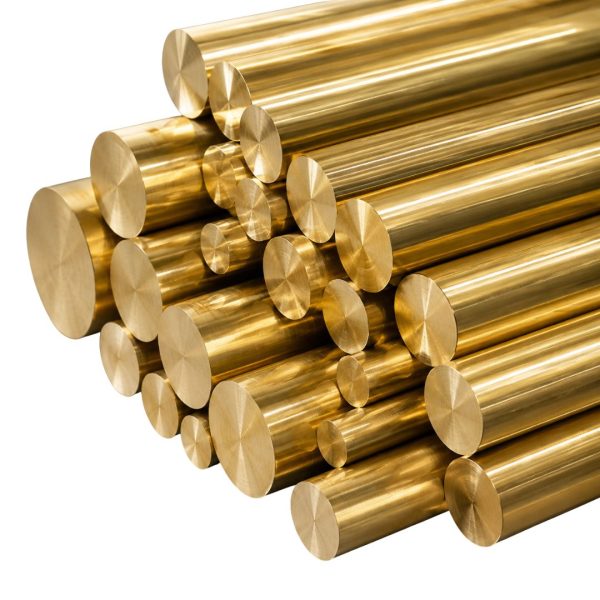

CDA353 High Leaded Brass is a 62% brass alloy with strong machinability and fair cold working capacity. It is commonly used for rod, strip, sheet, plate, bar, and machined brass components.
- Description
- Product Specifications
Description
CDA353 High Leaded Brass is a copper-zinc-lead alloy developed for applications that need efficient machining and repeatable component production. Its higher lead content improves cutting performance, making it suitable for automatic screw machine parts, fittings, gears, valve stems, and detailed brass components.
This alloy is suitable for blanking, machining, piercing, punching, roll threading, knurling, and stamping. It offers excellent soldering suitability, good brazing suitability, and a machinability rating of 90, while hot forming is rated as poor.
Key Features:
- High-leaded brass alloy
- 62% brass grade
- Machinability rating of 90
- Excellent soldering suitability
- Good brazing suitability
- Fair cold working capacityPoor hot forming capacity
- Suitable for machining, stamping, piercing, punching, roll threading, and knurling
| Element | Composition | Nominal |
|---|---|---|
| Copper (Cu) | 60.0-63.0% | 61.5% |
| Lead (Pb) | 1.5-2.5% | 2.0% |
| Iron (Fe) | 0.15% max | – |
| Zinc (Zn) | Remainder | 36.5% |
| Cu + Named Elements | 99.5% min | – |
| Form | Temper | Section Size | Tensile Strength | Yield Strength | Elongation |
|---|---|---|---|---|---|
| Rod | O60 | <12.7 mm | 317 MPa | 110 MPa | 20% |
| Flat Products | H06 | 1 mm | 586 MPa | 427 MPa | 5% |
| Rod | H01 | 34.9 mm | 290 MPa | 103 MPa | 20% |
| Rod | H01 | <12.7 mm | 358 MPa | 172 MPa | 10% |
| Rod | O60 | 34.9 mm | 276 MPa | 103 MPa | 30% |
| Rod | H02 | 34.9 mm | 400 MPa | 310 MPa | 25% |
| Flat Products | H04 | 1 mm | 510 MPa | 414 MPa | 7% |
| Flat Products | H02 | 1 mm | 421 MPa | 345 MPa | 20% |
| Melting Point – Liquidus | 910°C |
|---|---|
| Melting Point – Solidus | 888°C |
| Density | 8.47 g/cm³ at 20°C |
| Specific Gravity | 8.47 |
| Electrical Resistivity | 6.63 microhm-cm at 20°C |
| Electrical Conductivity | 0.152 MegaSiemens/cm at 20°C |
| Thermal Conductivity | 116.0 W/m.K at 20°C |
| Coefficient of Thermal Expansion | 20.3 x 10⁻⁶ per °C, 20-300°C |
| Modulus of Elasticity | 103400 MPa |
| Modulus of Rigidity | 38610 MPa |
| Soldering | Excellent |
|---|---|
| Brazing | Good |
| Butt Weld | Fair |
| Cold Working | Fair |
| Hot Forming | Poor |
| Machinability Rating | 90 |
| Common Fabrication Processes | Blanking, machining, piercing, punching, roll threading, knurling, and stamping |
| Common Forms | Bar, plate, rod, sheet and strip |
| Applicable Specifications | ASTM B121 and ASTM B453 |
