CDA356 (Extra High Leaded Brass)
CDA356 Extra High Leaded Brass is a copper-zinc-lead alloy designed for excellent machinability and efficient production of detailed brass components. It is commonly used for rolled bar, strip, rod, plate, sheet, and precision formed parts.
- Description
- Product Specifications
Description
CDA356 Extra High Leaded Brass is suited to applications where clean machining, stamping, piercing, punching, and blanking are required. Its high lead content supports excellent free-cutting performance, making it useful for components that need repeatable dimensional accuracy.
This alloy offers excellent soldering, good brazing, and a machinability rating of 100. It has poor cold working capacity and fair hot forming capacity, so it is best suited to machined and formed components rather than welded fabrication.
Key Features:
- Extra high leaded brass alloy
- Machinability rating of 100
- Excellent soldering suitability
- Good brazing suitability
- Fair hot forming capacity
- Poor cold working capacity
- Suitable for blanking, machining, piercing, punching, and stamping

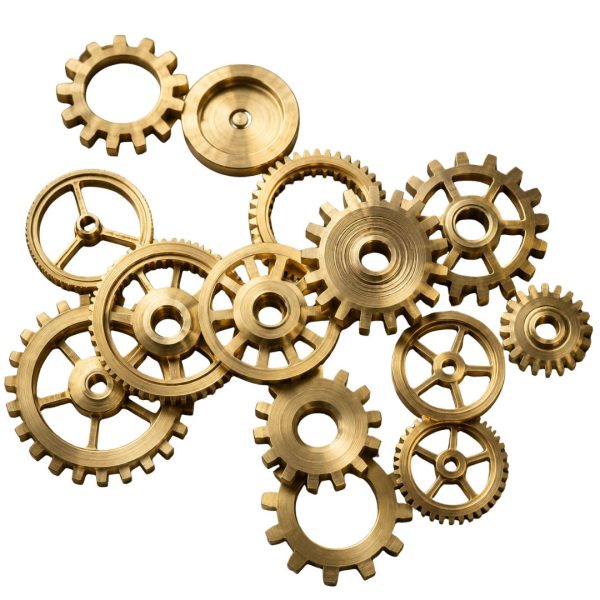

- Commonly used for clock components, strip, rod, rolled bar, sheet, and plate applications
| Element | Composition | Nominal |
|---|---|---|
| Copper (Cu) | 60.0-63.0% | 61.5% |
| Lead (Pb) | 2.0-3.0% | 2.5% |
| Iron (Fe) | 0.15% max | – |
| Zinc (Zn) | Remainder | 36.0% |
| Cu + Named Elements | 99.5% min | – |
| Melting Point – Liquidus | 904°C |
|---|---|
| Melting Point – Solidus | 888°C |
| Density | 8.5 g/cm³ at 20°C |
| Specific Gravity | 8.5 |
| Electrical Resistivity | 6.63 microhm-cm at 20°C |
| Electrical Conductivity | 0.152 MegaSiemens/cm at 20°C |
| Thermal Conductivity | 116.0 W/m.K at 20°C |
| Coefficient of Thermal Expansion | 20.5 x 10⁻⁶ per °C, 20-300°C |
| Specific Heat Capacity | 377.1 J/kg.K at 293 K |
| Modulus of Elasticity | 96500 MPa |
| Modulus of Rigidity | 36540 MPa |
| Soldering | Excellent |
|---|---|
| Brazing | Good |
| Butt Weld | Fair |
| Cold Working | Poor |
| Hot Forming | Fair |
| Machinability Rating | 100 |
| Common Fabrication Processes | Blanking, machining, piercing, punching, and stamping |
| Common Temper Options | H01, H02, H03, O60 and OS035 |
| Common Forms | Bar, plate, rod, sheet and strip |
| Applicable Specifications | ASTM B121 and ASTM B453 |
